MYQ1300 Automatic Die Cutting Machine with Intermittent Gearbox and Pneumatic Bench for 1320x980mm Corrugated Cartons

1 juegos
MOQ
To be negotiated
Precio
MYQ1300 Automatic Die Cutting Machine with Intermittent Gearbox and Pneumatic Bench for 1320x980mm Corrugated Cartons
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Garantía: 1 año
Tipo: Automático
Velocidad: 0-80 piezas/minuto
Condición: Nuevo
Servicio postventa proporcionado: Soporte en línea, soporte técnico por vídeo
Uso: Papel troquelado
Color: Blanco, gris
Tipo de embalaje: Plástico, madera
Información básica
Lugar de origen: Hebei, China
Nombre de la marca: GR
Certificación: CE,ISO
Número de modelo: MYQ1300
Pago y Envío Términos
Detalles de empaquetado: Embalaje de caja de madera (opcional) o embalaje de película de plástico bien embalado
Tiempo de entrega: 30-40 días
Condiciones de pago: LC, T/T, Unión Occidental
Capacidad de la fuente: 10 juegos/mes
Descripción de producto
MYQ1300 Corrugated Carton Die Cutting Machine
Product Overview
Fully Automatic Die Cutting and Creasing Machine designed with intermittent gearbox and pneumatic bench for feeding and collecting operations

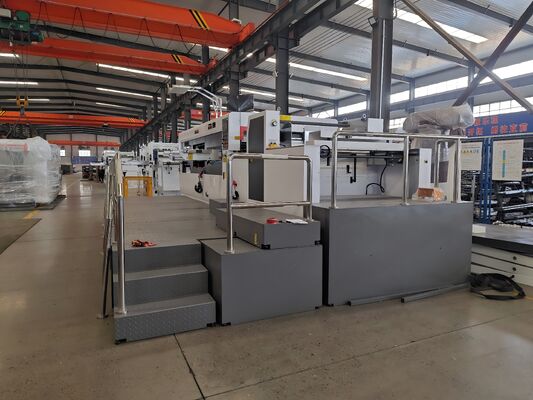

MYQ1300 Automatic Die Cutting Machine with Intermittent Gearbox and Pneumatic Bench for 1320x980mm Corrugated Cartons 0
Key Features
Feeding and Collecting System
  • Extra lead edge feeder for thick corrugated board processing
  • Central monitoring system for easy back observation
  • Pre-paper pile design with special pneumatic bench for time efficiency
  • Non-stop sampling system for quality checks during operation
Positioning System
  • Additional brush wheels and pressing wheels for thin paper and corrugated board
  • Advanced push and pull lay registration for precise die cutting
  • Rikko light front lay detection system prevents slanting paper entry
Main Body Construction
  • Automatic centralized lubricating system with HMI-controlled main chain lubrication
  • Patented shock absorption system for extended machine life and increased pressure
  • Taiwan-made intermittent gearbox for accurate registration and reduced gripper attack
Die-Cutting and Delivery System
  • Pneumatic lock system for accurate diecutting chase fixation
  • Air floating device for easy diecutting plate insertion and removal
  • Electric clutch system ensures chain stability during high-speed stops
  • PLC-controlled periodic lubrication for main and assist chains
  • Protection window maintains main body cleanliness
  • Lightweight aluminum alloy gripper bars with Renold UK or IWIS GERMANY chains
Paper Collecting System
  • Back and side aligning paper systems for orderly automatic feeding
  • Electric back aligning paper adjustment - three times faster than manual operation
  • Front monitoring capability with double detection switch for paper order monitoring
  • In-operation sampling capability
  • Automatic alarm system for paper collection platform replacement
  • Quantitative paper setting from 10 to 9999 sheets with automatic cutoff

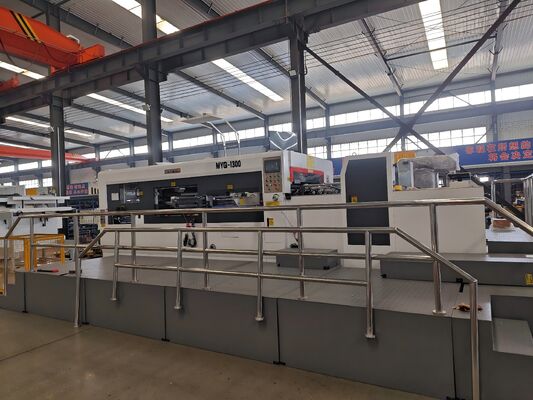

MYQ1300 Automatic Die Cutting Machine with Intermittent Gearbox and Pneumatic Bench for 1320x980mm Corrugated Cartons 1
Technical Specifications
Parameter Specification
Model MYQ1300
Die Cutting Type Pressed flat die cutting (Lower side movable, upper side unmovable)
Max Paper Transmitting Size 1320 × 980 mm
Min Paper Transmitting Size 400 × 380 mm
Max Die Cutting Size 1300 × 960 mm
Min Gripper Size 6-8 mm
Max Die Cutting Pressure 350 N/cm²
Paper Processed Corrugated board: 1-10mm
Max Die Cutting Speed 5500 sheets/h
Max Feeding Pile Height 1400 mm (above level)
Min Feeding Pile Height 1250 mm (above level)
Main Motor Power 11 kW
Total Power ~27 kW
Total Weight ~20 T
Overall Size 8540 × 4300 × 2345 mm
Packing and Shipping
  • Moisture-proof and shock-proof packaging suitable for long-distance road transportation
  • Designed for various weather conditions
  • Includes full set of maintenance and operation manuals

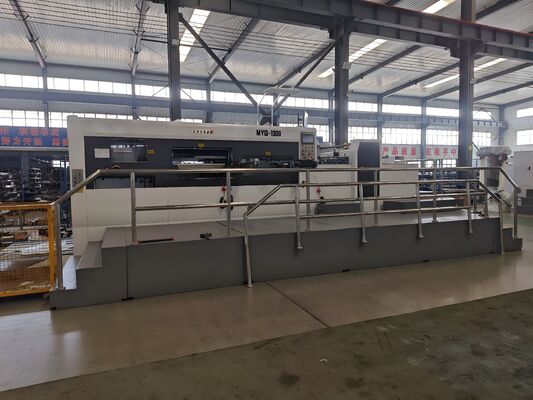

MYQ1300 Automatic Die Cutting Machine with Intermittent Gearbox and Pneumatic Bench for 1320x980mm Corrugated Cartons 2
Our Services
MYQ1300 Automatic Die Cutting Machine with Intermittent Gearbox and Pneumatic Bench for 1320x980mm Corrugated Cartons 3
