Inicio /Productos/Cadena de producción de la cartulina acanalada/High Capacity 2500mm Width SF Series Cassette Single Facer Machine with Steam Heating Suction for Corrugated Cardboard Production Line

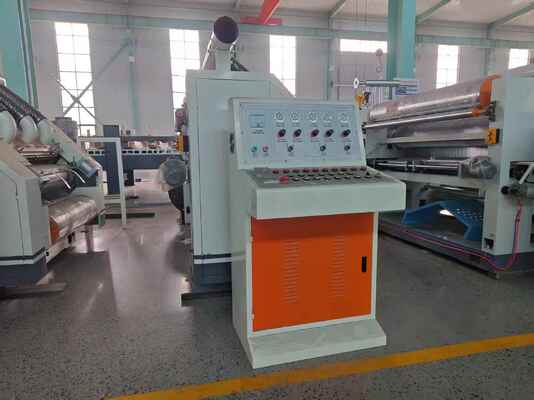

High Capacity 2500mm Width SF Series Cassette Single Facer Machine with Steam Heating Suction for Corrugated Cardboard Production Line

1 juego
MOQ
To be negotiated
Precio
High Capacity 2500mm Width SF Series Cassette Single Facer Machine with Steam Heating Suction for Corrugated Cardboard Production Line
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Nombre: solo facer
Uso: Fabricación de cartón ondulado
Color: Blanco
Garantía: 1 año
Material de embalaje: Plástico, papel, madera
Voltaje: 220V/380V/440V
Condición: Nuevo
Tipo impulsado: Eléctrico, de vapor
Información básica
Lugar de origen: Hebei, China
Nombre de la marca: GR
Certificación: CE,ISO
Número de modelo: SF30-2500
Pago y Envío Términos
Detalles de empaquetado: Revestimiento de película plástica o embalaje de caja de madera (opcional)
Tiempo de entrega: 30-60DÍAS
Condiciones de pago: LC, T/T, Western Union, MoneyGram
Capacidad de la fuente: 20 juegos/mes
Descripción de producto
High Capacity Corrugated Cardboard Production Line with SF Series 2500mm Width Cassette Single Facer Machine and Steam Heating Suction System
Corrugated Cardboard Production Line Equipped with SF Series 2500mm Width Cassette Single Facer Machine and Steam Heating Suction for Output. SF2500 Single Face Machine featuring advanced negative pressure design and quick-change roller system.
High Capacity 2500mm Width SF Series Cassette Single Facer Machine with Steam Heating Suction for Corrugated Cardboard Production Line 0
Key Features
  • Main corrugating roller: Ø500mm (varies by flute), pressure roller Ø600mm, preheat roller Ø500mm
  • Negative pressure design reduces heat consumption and ensures even core paper pressing for superior corrugate molding
  • Quick roller change in 10 minutes with electric trolley loading and air pressure locking system
  • Corrugated roller made from 50CrMo high-quality alloy steel with heat treatment and tungsten carbide surface
  • Airbag control system for corrugated and pressure rollers with barometric pressure buffering
  • Electric glue volume control with independent operation capability
  • Movable glue unit for easy cleaning and maintenance
  • User-friendly touch screen interface with color display for operation status and parameter settings
  • Built-in pre-conditioner with proportional spraying for core paper temperature and moisture adjustment
  • High-temperature grease bearings for main and auxiliary corrugating and pressure rollers
High Capacity 2500mm Width SF Series Cassette Single Facer Machine with Steam Heating Suction for Corrugated Cardboard Production Line 1
Technical Specifications
Parameter Specification
Effective Width 2500mm
Design Speed 200m/min
Economic Speed 180-300m/min
Paper Feed Range 950-2550mm
Maximum Steam Temperature 200℃
Steam Pressure 1.2Mpa
Working Power 380V 50Hz 37KW
Packaging & Shipping
Adopts moisture-proof and shock-proof packaging suitable for long-distance road transportation and various weather conditions. A full set of maintenance and operation manuals is included.
High Capacity 2500mm Width SF Series Cassette Single Facer Machine with Steam Heating Suction for Corrugated Cardboard Production Line 2
Our Services
  • Professional technicians assigned to client's site for equipment installation, commissioning, and operator training
  • Free training available at our company for operators and maintenance personnel upon request
  • Detailed installation and operation manuals provided with equipment
  • Free plant layout design available upon client request
  • One-year quality warranty with free maintenance and replacement of wearing parts
  • Long-term maintenance service and cost-price parts supply after warranty period
  • 24/7 complaint response system with resolution within 24-48 hours
