Inicio /Productos/máquina que corta con tintas del cartón acanalado/MYQ1500SA High Speed Full Automatic Corrugated Carton Die Cutting Machine for Precision Packaging Cutting

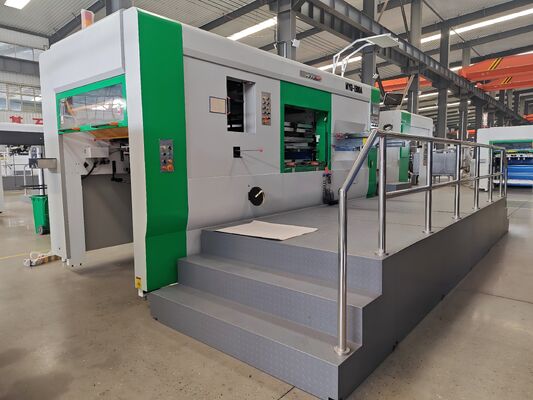

MYQ1500SA High Speed Full Automatic Corrugated Carton Die Cutting Machine for Precision Packaging Cutting

1 juegos
MOQ
To be negotiated
Precio
MYQ1500SA High Speed Full Automatic Corrugated Carton Die Cutting Machine for Precision Packaging Cutting
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Garantía: 1 año
tipo: Automático
Velocidad: 0-100 pedazos/minuto
Condición: Nuevo
Servicio postventa proporcionado: Soporte en línea, soporte técnico por vídeo
Uso: Papel troquelado
Color: Blanco, gris
Tipo de embalaje: Plástico, madera
Información básica
Lugar de origen: Hebei, China
Nombre de la marca: GR
Certificación: CE,ISO
Número de modelo: MY1500A
Pago y Envío Términos
Detalles de empaquetado: Embalaje de caja de madera (opcional) o embalaje de película de plástico bien embalado
Tiempo de entrega: 40-50 días
Condiciones de pago: LC, T/T, Unión Occidental
Capacidad de la fuente: 10 juegos/mes
Descripción de producto
MYQ1500SA High Configuration Full Automatic Corrugated Carton Die Cutting Machine
Designed for fast and accurate packaging cutting, the MYQ1500SA High Configuration Full Automatic Corrugated Carton Die Cutting Machine provides advanced die cutting and creasing solutions for the packaging industry, delivering exceptional performance and precision.
MYQ1500SA High Speed Full Automatic Corrugated Carton Die Cutting Machine for Precision Packaging Cutting 0 MYQ1500SA High Speed Full Automatic Corrugated Carton Die Cutting Machine for Precision Packaging Cutting 1
Key Features
A. Feeding and Collecting System
  • Extra feeder processes paper and corrugated board, equipped with BECKER vacuum pump
  • Central monitor installation for easy viewing of back section
  • Pre-paper pile design and special pneumatic bench save significant time
  • Non-stop sampling system enables board accuracy checks without machine stoppage
B. Positioning System
  • Additional brush wheels and pressing wheels for thin paper and corrugated board operation
  • Advanced push and pull lay registration ensures die cutting precision
  • Rikko light front lay detection system prevents slanted paper from entering main body
C. Main Body
  • Automatic centralized lubricating system with main chain lubrication controlled via HMI
  • Patented shock absorption system prolongs main body life and increases pressure capacity
  • Taiwan-made intermittent gearbox ensures accurate registration and reduces gripper attack
D. Die-cutting and Delivery System
  • Diecutting chase accurately fixed by pneumatic lock system
  • Diecutting plate insertion and removal via air floating device
  • Electric clutch system of main chain ensures steady operation during high-speed stops
  • Main chain and assist chain periodically lubricated via PLC control
  • Protection window maintains main body cleanliness
  • Lightweight aluminum alloy gripper bars with Renold UK or IWIS GERMANY chains ensure precision
E. Paper Collecting System
  • Back and side aligning paper systems ensure orderly automatic paper feeding
  • Simple structure with quick operation capabilities
  • Electric back aligning paper adjustment - three times faster than manual operation
  • Front machine monitoring of back aligning paper
  • Double detection switch monitors paper order
  • Sampling capability during machine operation
  • Automatic alarm when paper collecting reaches capacity
  • Quantitative paper setting from 10 to 9999 sheets with automatic cutoff at set value
Technical Specifications
Model MYQ-1500A
Die cutting type Pressed flat die cutting (Lower side movable, upper side unmovable)
Max paper transmitting size 1520×1120 mm
Min paper transmitting size 450×400 mm
Max die cutting size 1500×1100 mm
Min gripper size 8 mm
Max die cutting pressure 450 N/cm²
Paper processed Corrugated board: ≤ 10mm
Max die cutting speed 6000 sheets/h
Min feeding pile height 1250 mm (above the level)
Total power ~38kw
Total weight ~34 T
Packing and Shipping
  • Moisture-proof and shock-proof packaging suitable for long-distance road transportation
  • Designed for various weather conditions
  • Includes full set of maintenance and operation manuals
MYQ1500SA High Speed Full Automatic Corrugated Carton Die Cutting Machine for Precision Packaging Cutting 2
Our Services
MYQ1500SA High Speed Full Automatic Corrugated Carton Die Cutting Machine for Precision Packaging Cutting 3
